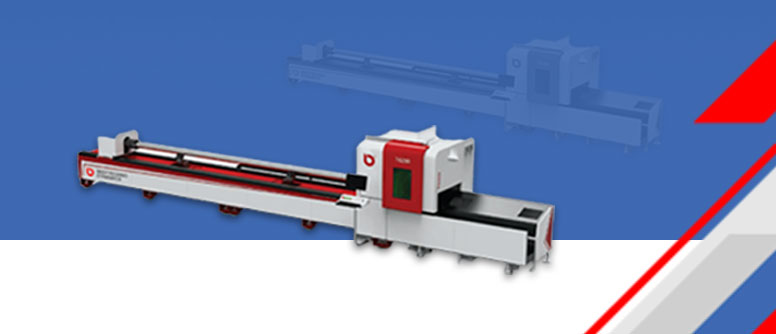

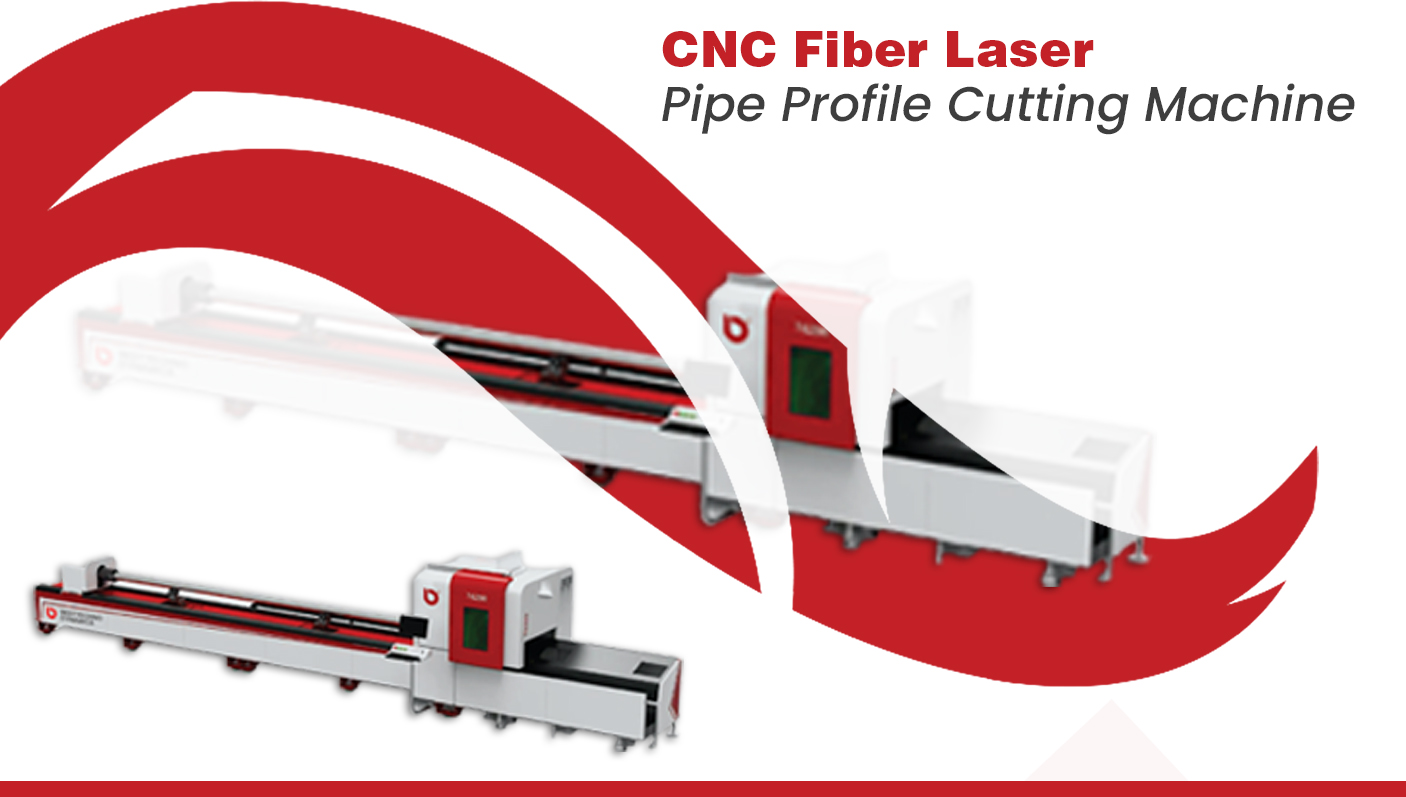

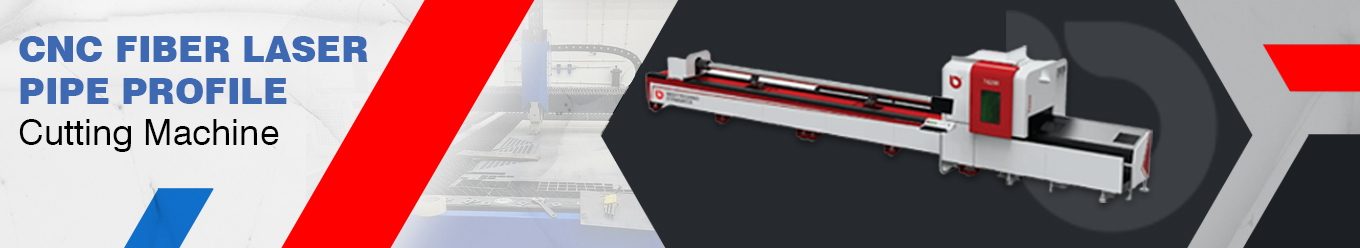

CNC Fiber Laser Pipe Profile Cutting Machine
Technical Parameters
| Model No | BTD-T6200 |
|---|---|
| Working Area | Diameter 20-350 Length - 6000mm Max |
| Machine | CNC Fiber laser Pipe Profile Cutting Machine |
| Z axis | 400mm |
| Laser Source | Ipg/Jpt/Max/Raycus |
| Cutting Head | Autofocus Raytools / Precitech |
| LM Guideway | Hiwin Y-30mm X-25mm Z-20mm |
| Rack & Pinion | YYC |
| Servo drive | Yaskawa/Fuji |
| Electricals | Schneider |
| Gantry | Mild Steel Based |
| Max Acceleration | 1.4G |
| Max Moving Speed | 140m/min |
| Position Accuracy | 0.03mm |
| Chuck Type | Pneumatic |
| Profiles | Round / Square / Rectangular / Angle / C-Channel |
