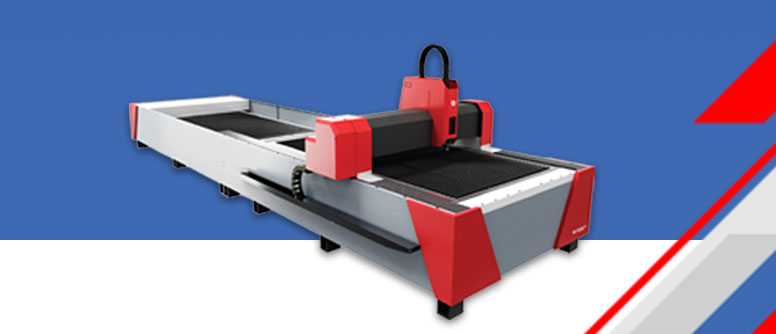

CNC Fiber Laser Cutting Machine with Pallet Changer
Technical Parameters
| Model No | BTD-W1530 | BTD-W2040 |
|---|---|
| Working Area | 1500x3000mm | 2000x4000mm |
| Machine | Dual Pallet Fiber Laser Cutting Machine |
| Z axis | 200mm |
| Laser Source | Ipg/Jpt/Max/Raycus |
| Cutting Head | Autofocus Raytools / Precitech |
| LM Guideway | Hiwin Y-30mm X-25mm Z-20mm |
| Rack & Pinion | YYC |
| Servo drive | Yaskawa/Fuji |
| Electricals | Schneider |
| Gantry | Aircraft Grade Aluminium Extrusion/ metal steel |
| Max Acceleration | 1.4G |
| Max Moving Speed | 140m/min |
| Position Accuracy | 0.03mm |
| Locking | Magnatic Locking of pallet |
| Pallet Mechanism | Gearbox motor with chain Sprocket Mechanism |
